Insulation level: 130C ° C
Soflex?PET-PET It is a composite material formed by coating two to three layers of polyester film with adhesive.
Basic characteristics
? Excellent mechanical toughness
? Good dielectric strength
Insulation level: 130C ° C
Soflex?PET-PET It is a composite material formed by coating two to three layers of polyester film with adhesive.
Basic characteristics
? Excellent mechanical toughness
? Good dielectric strength
Soflex?PET-PET It is a composite material formed by coating two to three layers of polyester film with adhesive, suitable for insulating the high and low voltage coils of resin cast transformers
Thickness (mm) | Standard width (mm) | Standard width (mm) | Standard width (mm) |
0.50 | 800 | 1000 | 1200 |
0.70 | 800 | 1000 | 1200 |
1.10 | 800 | 1000 | 1200 |
1.40 | 800 | 1000 | 1200 |

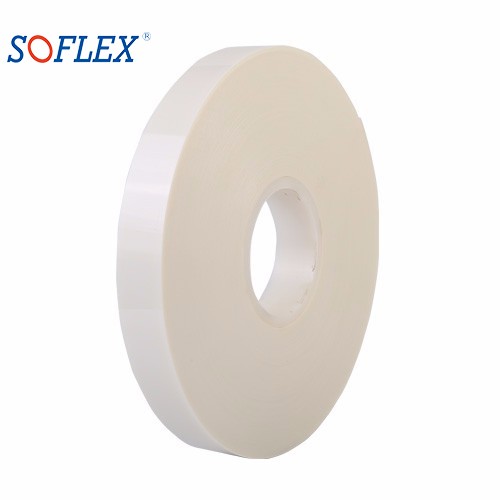

Soflex?PET-PET The inner diameter of the core is 3 inches, and it can be supplied in whole rolls or cut into reels or sheets. The length can be determined according to customer requirements.
Suitable for use as insulation cylinder for high and low voltage coils of resin cast transformers, and can also be used as slot insulation, inter turn insulation, and liner insulation on motors. It is not suitable for stamping molding and is prone to delamination.
Storage suggestions
1. Store in a dry and clean room at room temperature.
2. Do not approach sources of fire, heating, or direct sunlight.
3. The storage period is generally 12 months. If it exceeds the storage period and passes the technical standard inspection, it can still be used.
